Sound

Console:

• FOH-Digico SD12 with 4 MADI BNC connections. Digico D-2 stage rack with 48 ins 16 outs on stage
  • FOH position has Waves SoundGrid Server One available. Only FOH console comes with a DMI Waves card. Dedicated MacBook Pro for running Waves.
  • Multi-track recording available at FOH and Monitors via UB-MADI connection.
• Monitors- Digico SD12 with 4 MADI BNC connections. Digico D-2 stage rack with 48 ins and 16 outs on stage, with Rapco 48 channel analogue split.
  • The monitor mixing position is stage left.

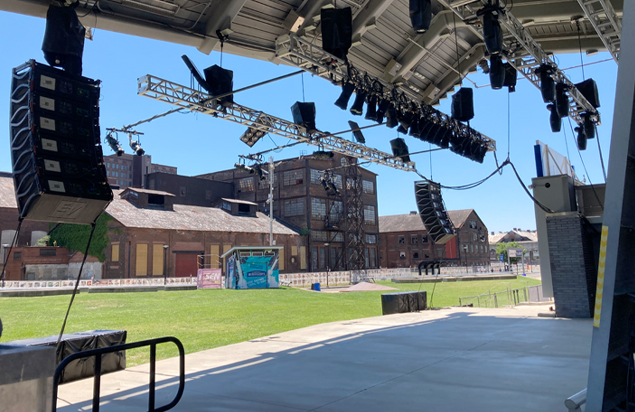

Speakers:

• 12 Electro Voice XLC 127+ Line Array, (6 per side)
• 6 Showco 2×18” subs, (3 per side)

Monitors:

• 10 Renkus-Heinz Model PN121M
• 1 18” Renkus-Heinz Drum Sub
• 8 RCF NX12SMA Active stage monitors

Processing/Amplification:

• Lake LM26 loudspeaker processor
• Lab Gruppen 10000Q amplifiers

Lighting

Console:

• Avolights T3 mobile console w/titan software

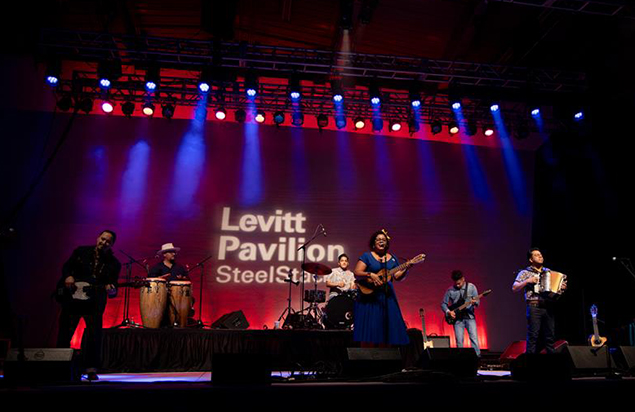

Lighting Rig:

• 20 Robe iParfect RGBW Zoomable – mid-stage truss
• 8 ADJ Hydro Spots, moving profile fixtures – upstage truss
• 6 Source-4 Ellipsoidal 575w 50-degree lights for front wash – downstage truss
• 4 Audience Blinder Units – downstage truss

Dimming:

• ETC Sensor 48 Tour Racks

Hazer:

• Antari HZ1000 Haze Machine

Backline

Drums:

• Yamaha Stage Custom, Birch
• 20″ Kick
• 10″ Rack Tom
• 12″ Rack Tom
• 14″ Floor Tom
• 14″ X 4.5″ Metal Yamaha Snare w/ stand
• Hi-Hat Stand
• 4- Yamaha Cymbal Stands

Cymbals:

• Sabian XS20 Cymbal Pack
• 14″ Hi-Hat
• 20″ Ride
• 14″ & 16″ Crash

Bass:

• Ampeg SVT Classic Tube Head
• Ampeg SVT 8X10 Cabinet

Guitar:

• Fender ’65 Twin R.I. combo
• Mesa Triple Rectifier 3 channel 150watt Head
• Mesa Rectifier 4X12″ Cabinet

Keyboard:

• Nord Stage 3 88 weighted keyboard
• X-brace stand

Video

• 16’ x 9’ video wall off-stage right
  • 5.95mm resolution
  • 804pixels x 504pixels
• Novastar processing

Stage

• Concrete stage – Approx. 3’ tall
• Usable Stage size- 40′ Wide by 25′ Deep
• Grid trim height: Approx. 20’

House Notes

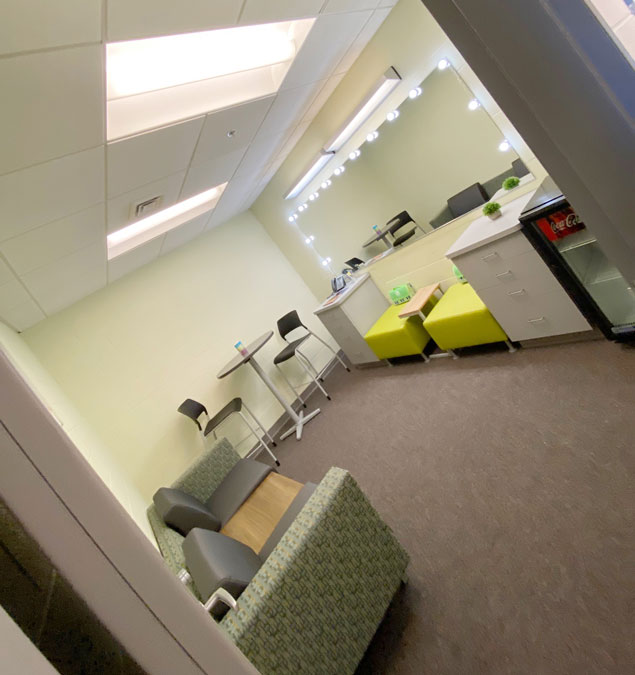

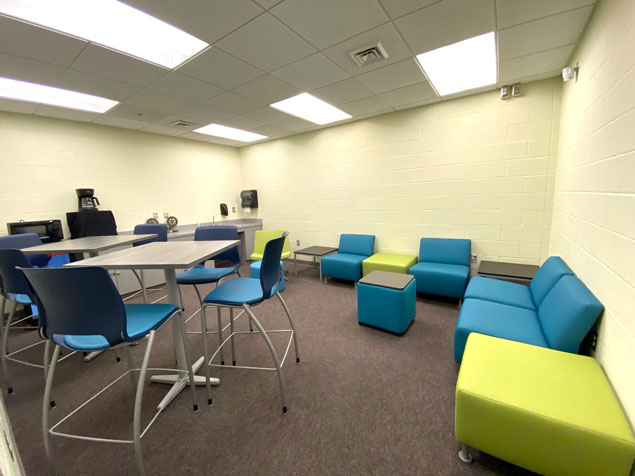

Green Room/ Backstage:

• (2) Two Dressing Rooms
• (2) Private bathrooms
• (1) Shower

Other:

• Loading dock is located stage left – max truck size 20’ box truck
• 40’ backdrop truss available upstage
